This experiment uses a simple support beam on which loads are applied at different positions. Shear force is more important that axial force in beam designing.
Simple Supported Beam And Corresponding Bending Moment Diagram Under Download Scientific Diagram
According to Hibbeler beams develop different internal shear force and bending moment from one point to another along the axis of the beam Premium Torque Force Read More.
. B Also the apparatus does not give exact and accurate reading. Bending Moments in Beams 2. Bending moment on the beam.
Internal shear forces and bending moments within the beam that in turn induce internal stresses strains and deflections of the beam. Bending Moment EXPERIMENT 2B. Beams can be classified based on their manner of support cross-section length and their material.
Displace the beam from its present place then that deflection of beam from its resent. Beam bending is quite a common experiment carried in mechanical engineering and aerospace design. The following load causes a deflection of the beam which is measured by using a clock gauge positioned at the middle of the beam.
By comparing the analytical and experimental results the effects of the. Com Abstract-The equations of motion and bending of Euler-Bernoulli beam are formulated Lab Report 1 - Forced vibration of. Bending is defined as a behavior of any structural element that undergoes the external load which is applied perpendicularly to longitudinal axis.
BM at cut Wa Wa 03182 Wa When mass 100g BM 098 03182 03118 Nm When mass 200g BM 196 03182 06237 Nm When mass 300g BM 294 03182 09355 Nm When mass 400g BM 392 03182 12473 Nm 3. Consequently it is not always sufficient to investigate the points of zero shearing force when determining the maximum bending moment. To stop the beam collapsing a moment arm bridges the cut onto a load cell thus reacting and measuring the bending moment force.
It consists of a beam which is cut by a pivot. 20 OBSERVATION AND CALCULATION Experimental bending moment For mass 400g 13 x 0125 016Nm For mass 200g and 400g 32 x 0125 040Nm For mass 500g and 400g 35 x 0125 044Nm Bending moment For mass 400g mb 0 RA 044 392 058 0 044RA 2274 RA 5167N Fy Fy. When the forces are alligned into each other they are called compression forces.
Up to 24 cash back Bending stress in a beam lab report example answers pdf download According to the experiment refer to table 2 and after correcting the values still the opposite sides are not identical. Introduction The shear force F are unalligned forces pushing one part of a body in one direction and another part the body in the opposite direction. Use this to position the beam on its supports.
ABSTRACT Performance-based design approach demands a thorough understanding of axial forces. Results for Experiment 1 25 ANALYSIS OF DATA Theoretical bending moment Nm calculation Using formula. Discussion and Get Access.
Bending of beam lab report essay example for free. Bending Moment in a Beam Lab Report Theory Shear force In beam designing shear force is one which is perpendicular to the longitudinal x axis of beam. In order to calculate the bending stresses in the beam following formula can be used E σε MI σy Here E is the young modulus M is the bending moment I is the second moment of inertia of beam σ is the bending stress Nm-1.
At a point on the beam where the type of bending is changing from sagging to hogging the bending moment must be zero and this is called a point of inflection or contraflexure. When an external load or the structural load applied in beam is large enough to. Shear Force And Bending Moment Lab Report Essay Exle.
SHEAR FORCE AND BENDING MOMENT 1. Experimental modal analysis is the process to determine the modal parameters in the form of. 526 X-014 1962X Thus the point of contra flexture for those specific loads equals 0223m or 223mm from P1 Figure 7.
Bending stresses main depends on the shape of beam length of beam and magnitude of the force applied on the beam. Change its shape and internal forces will be developed. Bending in beams lab provides a visualisation and proof of this basic theory.
Bending moment graph 4. MX left MX right. Bending of Beam.
Moments are calculated by using statics theory or multiplying perpendicularly. Aim of this experiment is to study the effect of force magnitude on shear forces in a beam Recommended. Figure 1 shows the Bending Moment in a Beam experiment.
Solved 1 Figure 3 Force Diagram The Equation To Be Use In Chegg. 001185 Table4 Results for experiment in terms of bending moment with y-position. Taking that reference point as X we obtain.
Make a pencil mark on the side of part A of the beam 300mm from the pin through the two ball bearings in the right hand part B of the beam. Bending characterizes the behavior of a slender structural element subjected to an external load applied perpendicularly to a longitudinal axis of the element. To study the relationship between shear force and bending moment at any section.
Make pencil marks on top of the beam at 100mm from the left hand support. In this lab we are focussing on determining internal bending moment of a beam subjected to concentrated. Axis is called bending of beam.
When a beam experiences a bending moment it will. S theorericsl bending moment nm posite beam bending experiment 2 cantilever beam lab memo mman1300 shear force bending moment. The beam from its current point then that diversion of the beam from its axis affects is called beam decrease moment of flexing in simple words The time of bending of the beam is the product of the force applied on the beam with the distance between the point of application of force e lâ fixed ends of the beam introduction to experiment This.
April 27th 2018 - lab report shear force and bending moment pdf diagram of the beam in the experiment 1 student lab report work product Lab Report 1 Lab 1 Shear Force and Bending Moment in a May 1st 2018 - View Lab Report Lab Report 1 from PHYS 30320 at Notre Dame Lab 1 Shear Force and Bending Moment in a Beam Alan Papalia May 6th 2017. It can be easily found by using moment equation about that point and equate it to zero. A bending moment will occur when a moment is applied to a system so that the system will bend.
Doc Le Shear Force And Bending Moment Li Ren Academia Edu. That experiment helps us to find the maximum load that can be applied to the beam with rectangular cross section. 11 objectives of the experiment to understand the application of the simple bending formula in the elastic bending theory and to examine how material properties youngs modulus - e and sectional properties second moment of area - i affect bending stress σ.
Solved Experiment 1 Bending Moment Variation At The Point Chegg Com
Ddpa 2052 Bending Moment

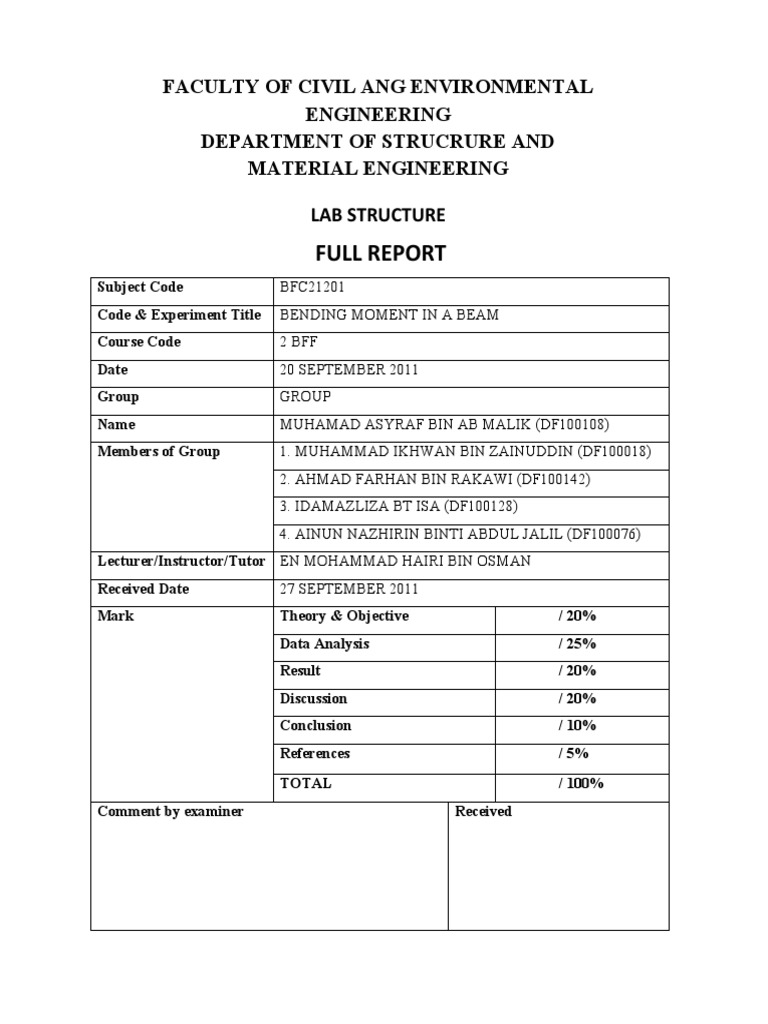

Green Mechanic Bending Moment In A Beam Lab Report
